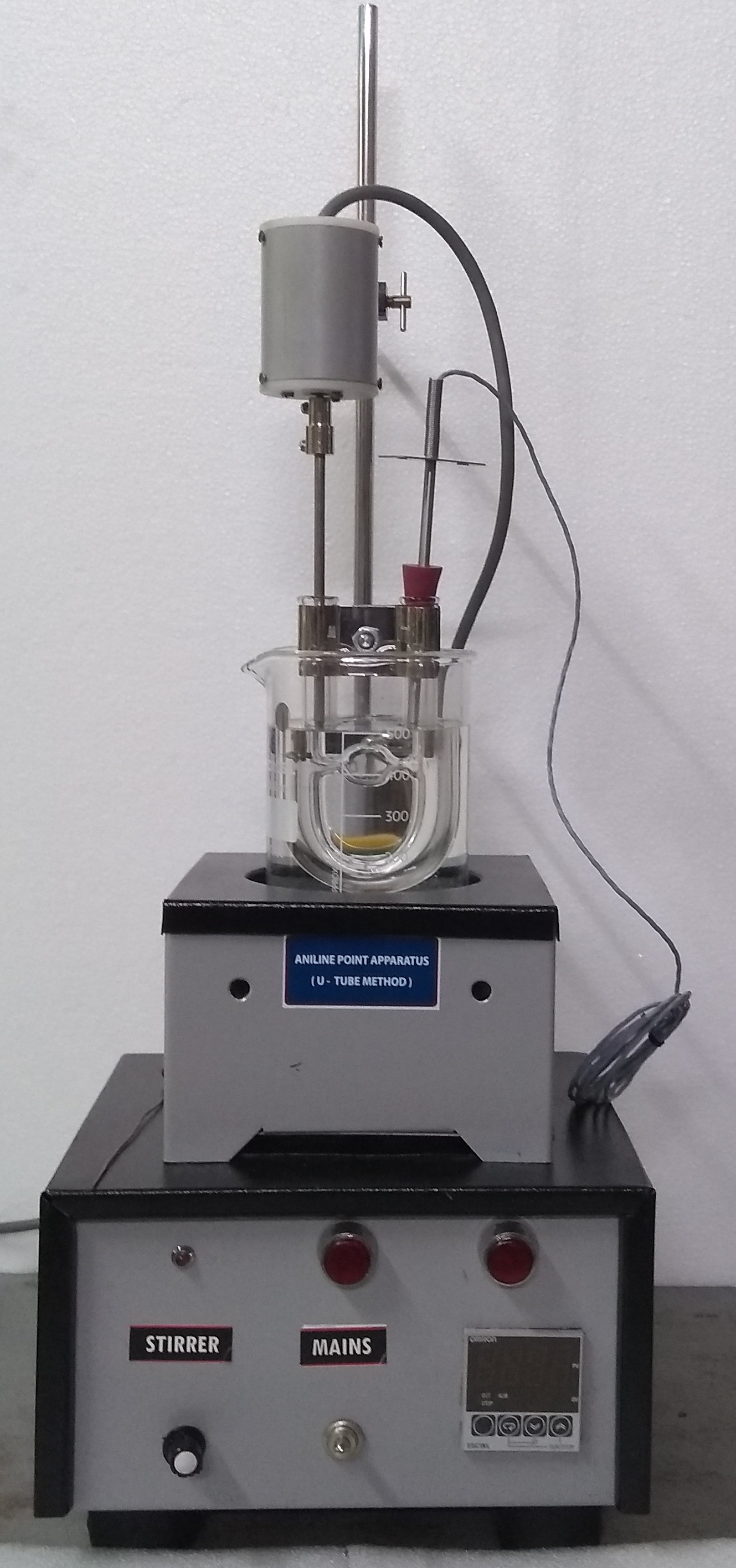

ANILINE POINT APPARATUS-METHOD D-WITH MOTORIZED STIRRER
Model Number : EIE-PTLT-150DDM
Scope:These test methods cover the determination of the aniline point of petroleum products and hydrocarbon solvents. Method D is for samples that may vaporize appreciably at the aniline point, particularly suitable where only small quantities of sample are available..Aniline point app. as per IP-2 method 'D' by U-tube method elect. heated with FHP stirrer but without IP or ASTM Grade thermometers. Spare U Tube available at extra cost
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance with following International Standards
ASTM D611, IP 2
Brief Construction Details
The complete assembly consists of following parts and accessories.
- Bulb of 1.5 ‑ 2.0 ml capacity, 3 mm internal diameter
- Blub made of heat resistant glass
- Electric heater device with motorized stirrer
- Test tube 22 mm Ø × 150 mm height
- Caps
- Support
Optional accessories at extra cost:
- Spare U‑Tube @ Rs 750
- IP 20C (‑38/42°C x 0.2C) @ Rs 850
- IP 21C (25/105°C x 0.2C) @ Rs 850
- IP 59C (90/170°C x 0.2C) @ Rs 850
Technical specification
Overall Dimensions in Inches (L x W x H) |
9.5 x 9 x 26 |
Weight (kg) |
5.15 |
