PURPOSE

Used to determine the viscosity of oils and fuel, above room temperature up to a maximum of 150°C. Generally used @ 40°C but can also be used at any other temperature between measuring range. Can also be used for other application where full visibility of sample and constant temp. is important for the test. The Instrument complies with IP 71, ASTM D 445 & 446

CONSTRUCTION

• Borosilicate round glass jar to accommodate 4 Viscometers
• Equipped with slow speed vibration free FHP motorized stirrer
• Accommodation of Four viscometer is possible.
• Work space illuminated brilliantly without glare
• Temperature controlled by digital dual set‑point Microprocessor based PID Controller with certificate of calibration
• All electrical controls are mounted on a drawer chassis in the side part of the case of the bath.
• DIGITAL STOP WATCH is mounted on the control panel to precisely observe the elapsed time for oil passing from viscometer lower mark to upper mark or vice versa.
• Designed for easy cleaning and simple maintenance
• Built‑in boost for initial fast heating
• Working size approx: 305 mm dia X 305mm depth
• Rating : 1.5 KW

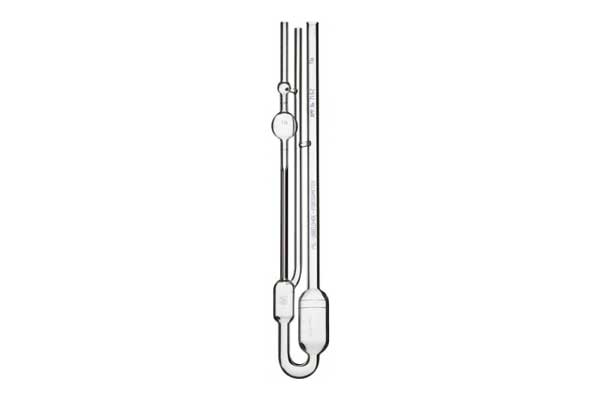

• Glass U Tube Viscometers of various size and shape available. These are to be procured at extra cost.
• Digital temp. controller with resolution of 0.01°C also available. Price on request.

Optional Accessories At Extra Cost :

• Voltage Stabilizer (Highly recommended)
• Temperature calibration certificate as per ISO/IEC : 17025 (NABL)
• Thermometer glass ‑ IP 30C (‑23.6 / 26.4°C x 0.05°C ) ASTM 45C:
• Glass U Tube Viscometer to be purchased at extra cost
• viscometer rack for safe keeping of U Tube Viscometer - can accommodate 6 tubes on a bench top

Note

Use of RO/DM Water as a bath media is mandatory for long lasting performance of Heaters. Warranty void in case of non compliance
