Compliance with following International Standards :

ASTM D445, IS 1448 (P-25)

Application :

Used for determination of kinematic and intrinsic viscosity Of fuels, lubricants & petrochemical raw materials at constant temperatures in accordance with ASTM D 4603 and other equivalent methods

Annexure :

• Microprocessor based circuitry assures precise, reliable temperature control within specified tolerances throughout the operating range of the bath i.e. 10 °C to ambient temperature.
• Dual digital displays show set and actual bath temperature
• Simple push button controls and digital display permit easy setting and monitoring of bath temperature.
• Bath accommodates 06 Nos glass capillary reversion viscometers of various types at a time
• Viewing the viscometers is made easy by glare‑free fluorescent illumination.
• Temperature control uniformity is assured by means of motorized stirrer, which provides complete circulation without turbulence.
• Frost free glass window for low temperature bath
• Control panel is mounted on a side of the bath
• Complete exterior body is finished with attractive powder coated paint

Technical Specifications of Refrigeration System:

• Refrigeration system : Emerson/Danfoss Make refrigeration system
• Compressor : Hermetically Sealed Compressor
• Condenser : Fin & Tube type Air‑Cooled Condenser
• Refrigerant : R134a

Optional Accessories At Extra Cost :

• Voltage Stabilizer (Highly recommended)
• Temperature calibration certificate as per ISO/IEC : 17025 (NABL)

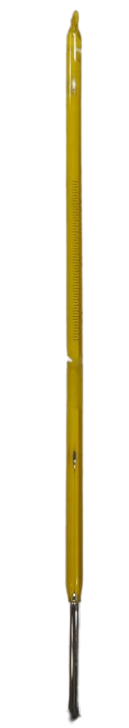

• Thermometer glass ‑ IP 30C (‑23.6 / 26.4°C x 0.05°C ) ASTM 45C:
• Glass U Tube Viscometer to be purchased at extra cost
• viscometer rack for safe keeping of U Tube Viscometer - can accommodate 6 tubes on a bench top

Note

Use of RO/DM Water as a bath media is mandatory for long lasting performance of Heaters. Warranty vois in case of non compliance
