Compliance Standards:

ASTM D5581.

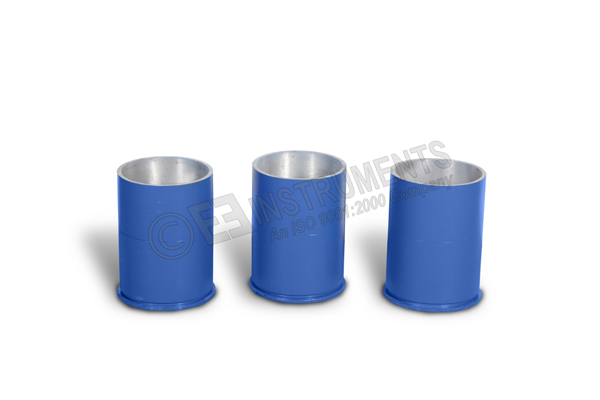

The Marshall Mould with outside dia of 6.5" (165.1mm) and inside dia of 6"(152.4mm ± 0.2mm), Mould having inside diameter by 4.5"(114.3 mm ± 0.3mm) in height, base plates, and extension collars will conform to the details shown in Fig. 1 of ASTM D5581.

Technical Specifications:

1. Used to produce the Marshall specimens with automatic or manual compactors
2. Manufactured from seamless Mild steel
3. Powder coated to prevent corrosion
4. Mould consists of Mould body, collar and Base plate
5. Mould Diameter   : 6" (152.4 mm)
6. Mould height (without collar) : 4.5"(114.3 mm ± 0.3mm)
